1️⃣ Start: the regression objective
Your model wants to minimize:

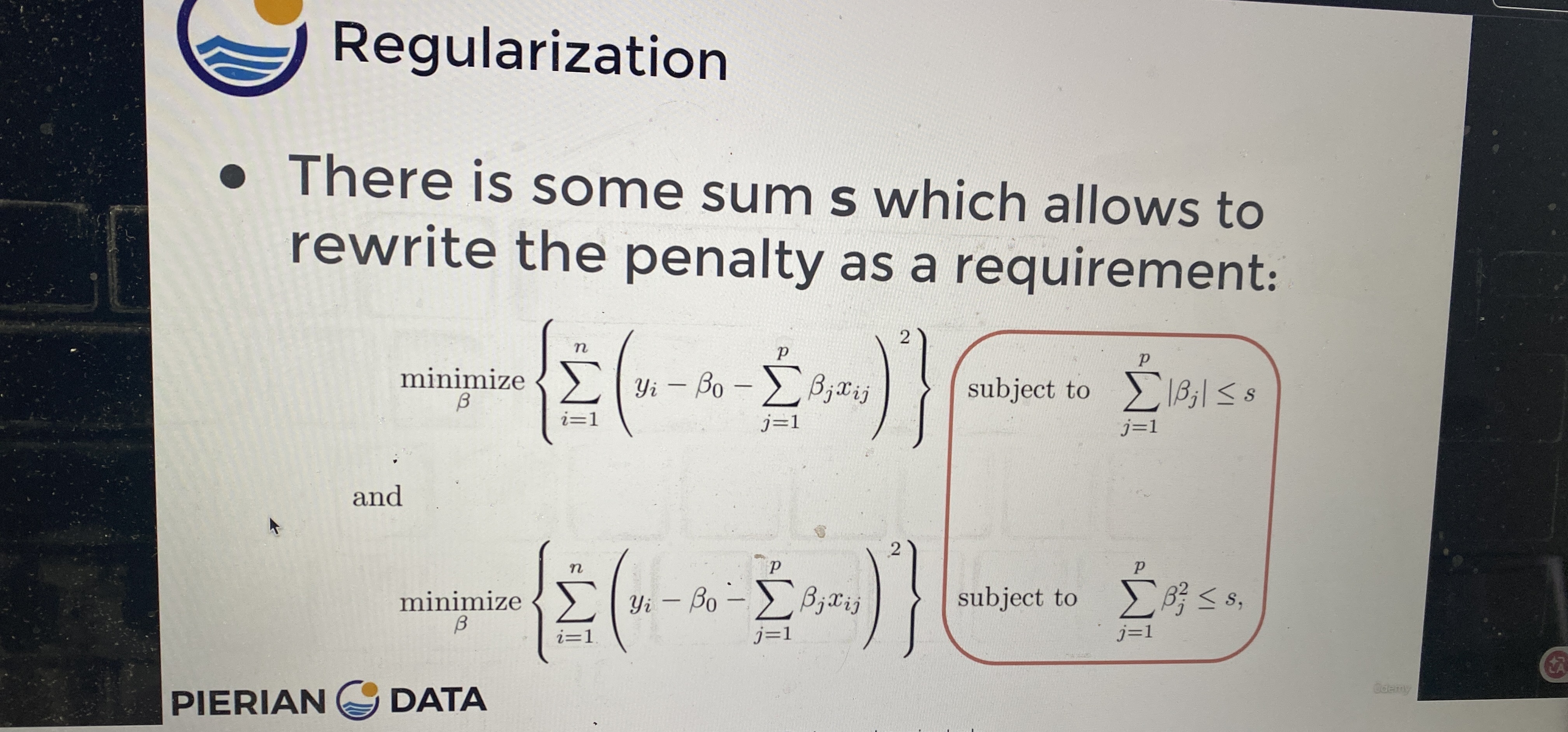

2️⃣ Add regularization = add a boundary
Regularization says:
You cannot choose any β you want.
β must stay inside a constraint region.
That region is the green shape in the slides.
Your optimization becomes:
Find the lowest RSS ellipse
that still touches the allowed region
The touching point = final coefficients.
This is the key idea of regularization geometry.

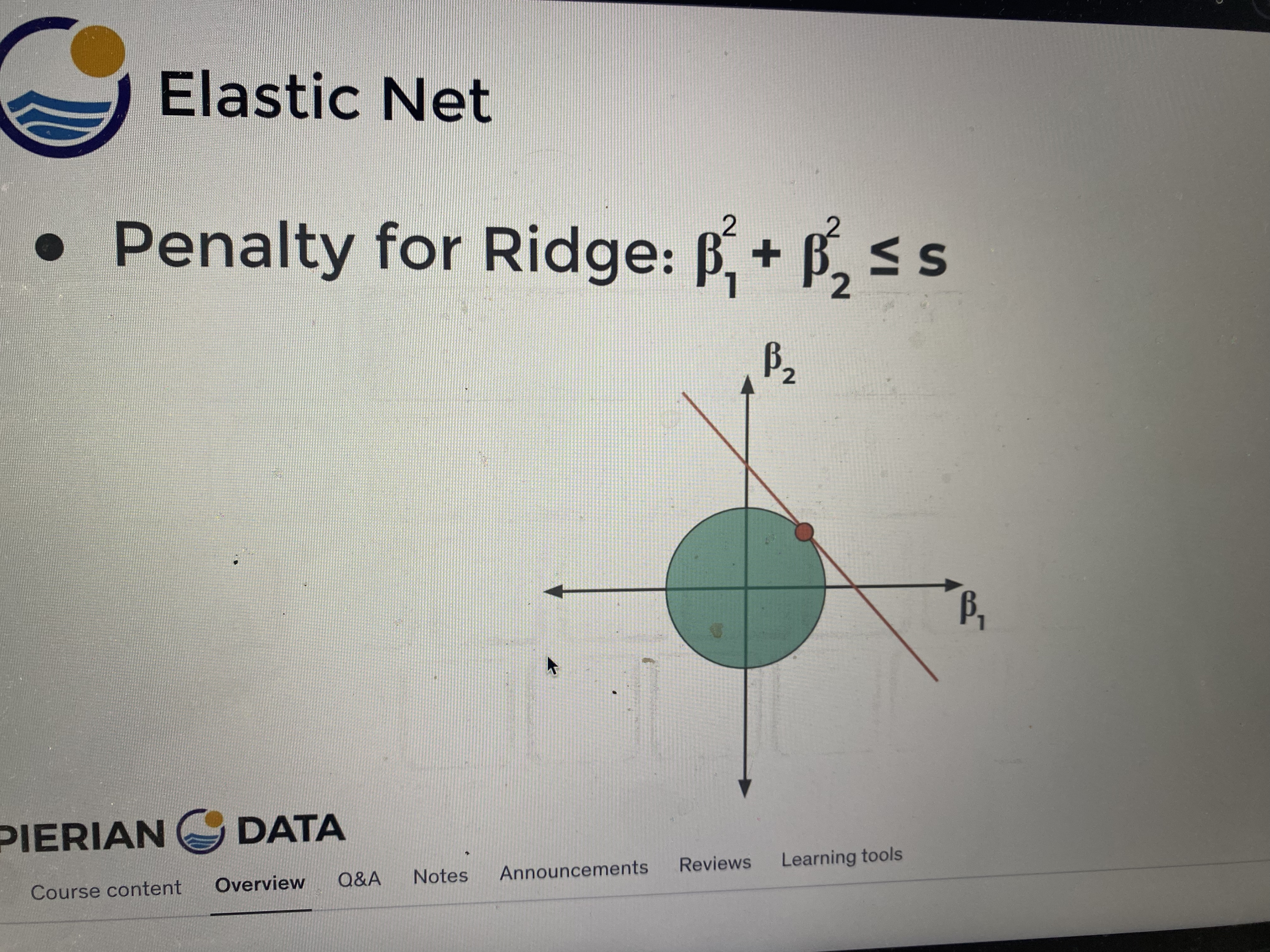

3️⃣ Ridge regression (circle)
Slide:
This forms a circle.
Why?
Because
x² + y² = radius²
is a circle.
So Ridge constraint looks like:
Your RSS ellipse expands until it touches the circle.
Important observation:
👉 Circles have no corners.
So the touching point usually looks like:
β1 ≠ 0
β2 ≠ 0
That’s why Ridge rarely produces zero coefficients.
It just shrinks them smaller.

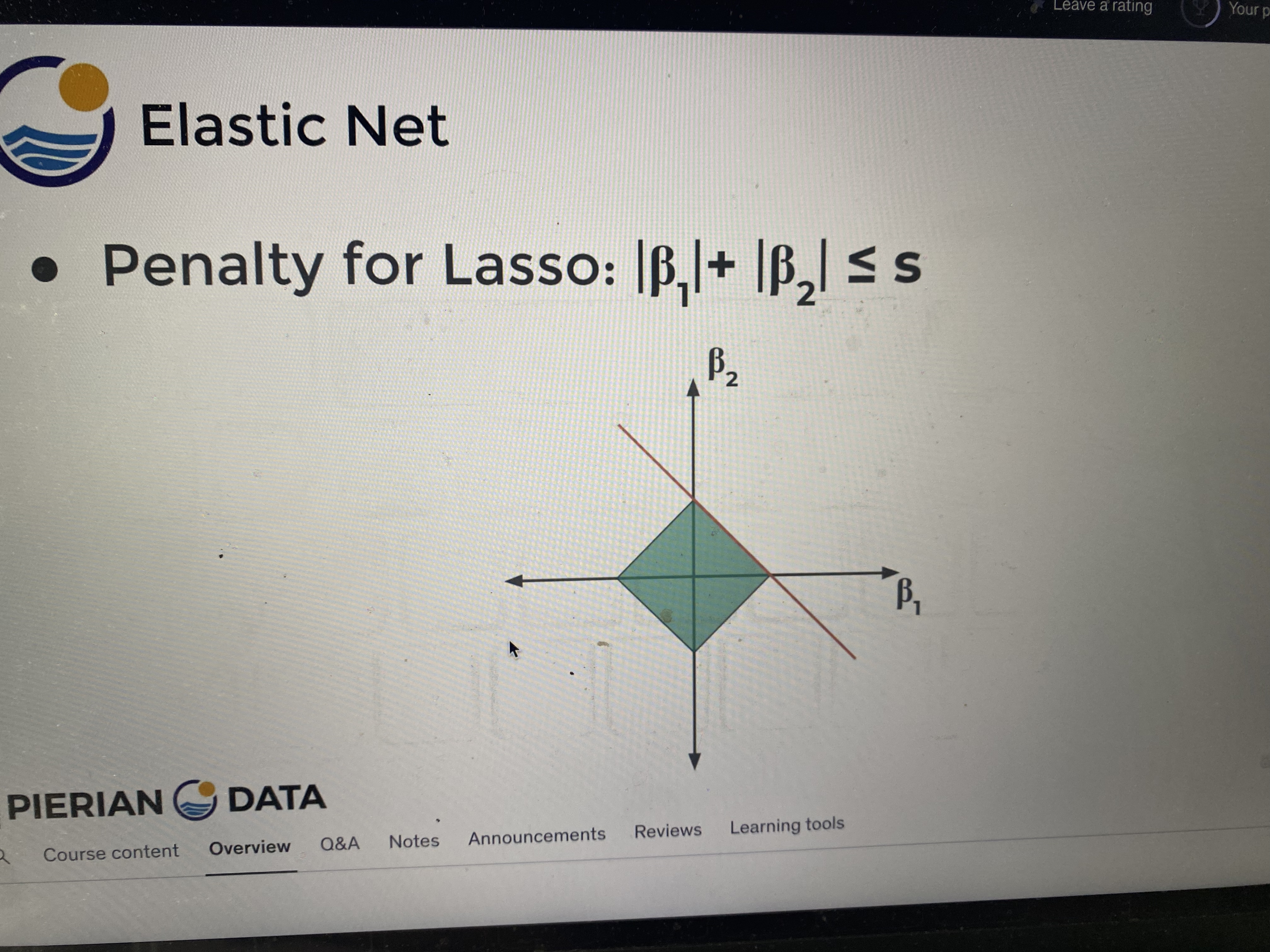

4️⃣ LASSO (diamond)
Constraint:
This produces a diamond shape.
Why?
Because:
|x| + |y| = constant
forms a diamond.
Now something important happens.
The diamond has sharp corners.
Those corners lie exactly on the axes:
β1 = 0
or
β2 = 0
When the ellipse expands, it is very likely to hit a corner first.
Example:
touches here
▲
/X\
That means:
β1 = 0
β2 ≠ 0
or
β2 = 0
β1 ≠ 0
This is feature selection.
That is why:
LASSO sets coefficients exactly to zero.

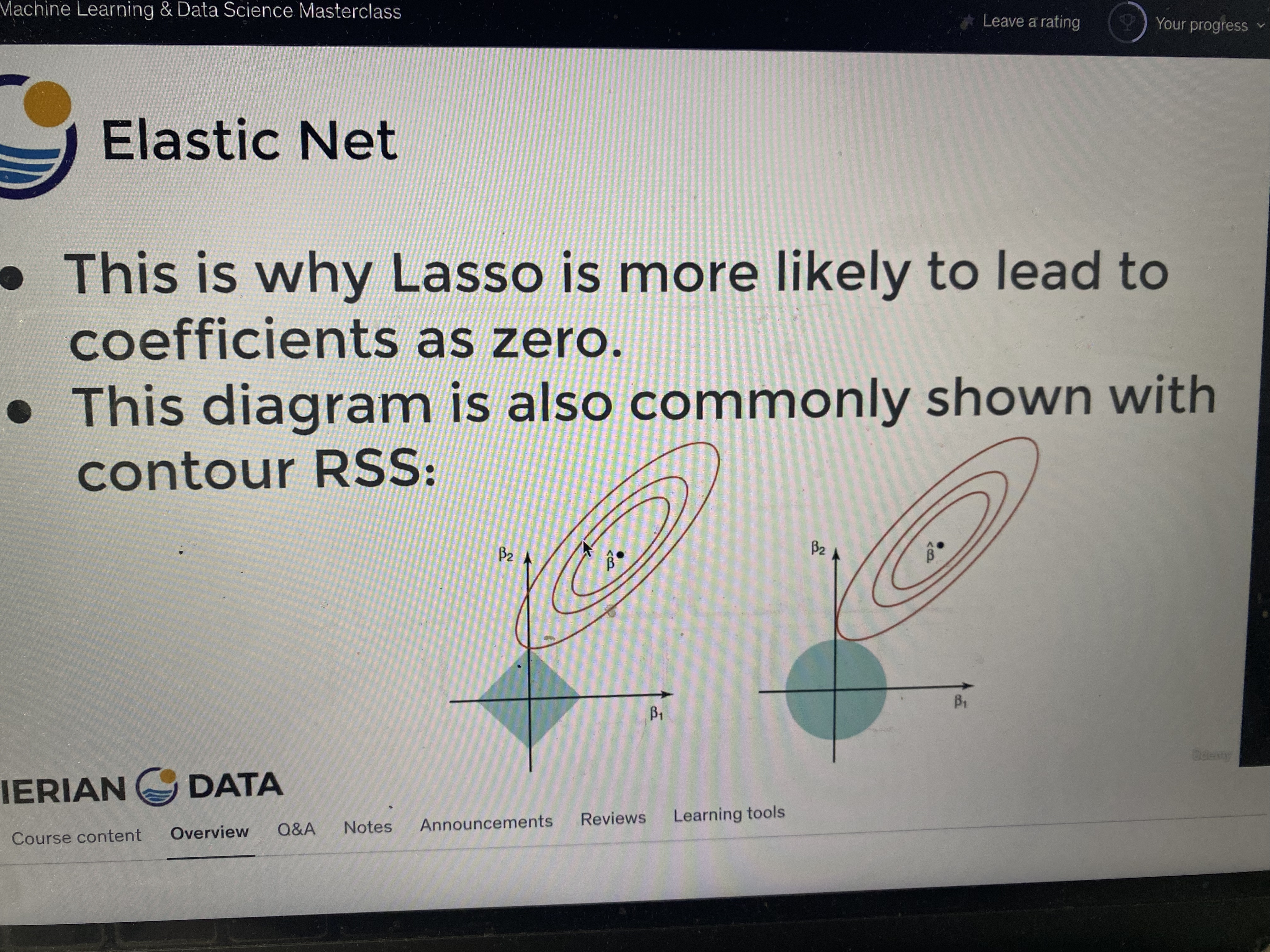

5️⃣ The famous comparison picture
Your last slide shows this:
Left = LASSO
Right = Ridge
LASSO
◇
ellipse hits corner
→ coefficient = 0
RIDGE
○
ellipse hits smooth edge
→ both coefficients non-zero
This geometric property explains everything about L1 vs L2.
6️⃣ Now Elastic Net
Elastic Net combines both penalties.
The formula on your slide:
Meaning:
penalty = mix of L1 + L2
Where:
α = 1 → pure LASSO
α = 0 → pure Ridge
0 < α < 1 → Elastic Net

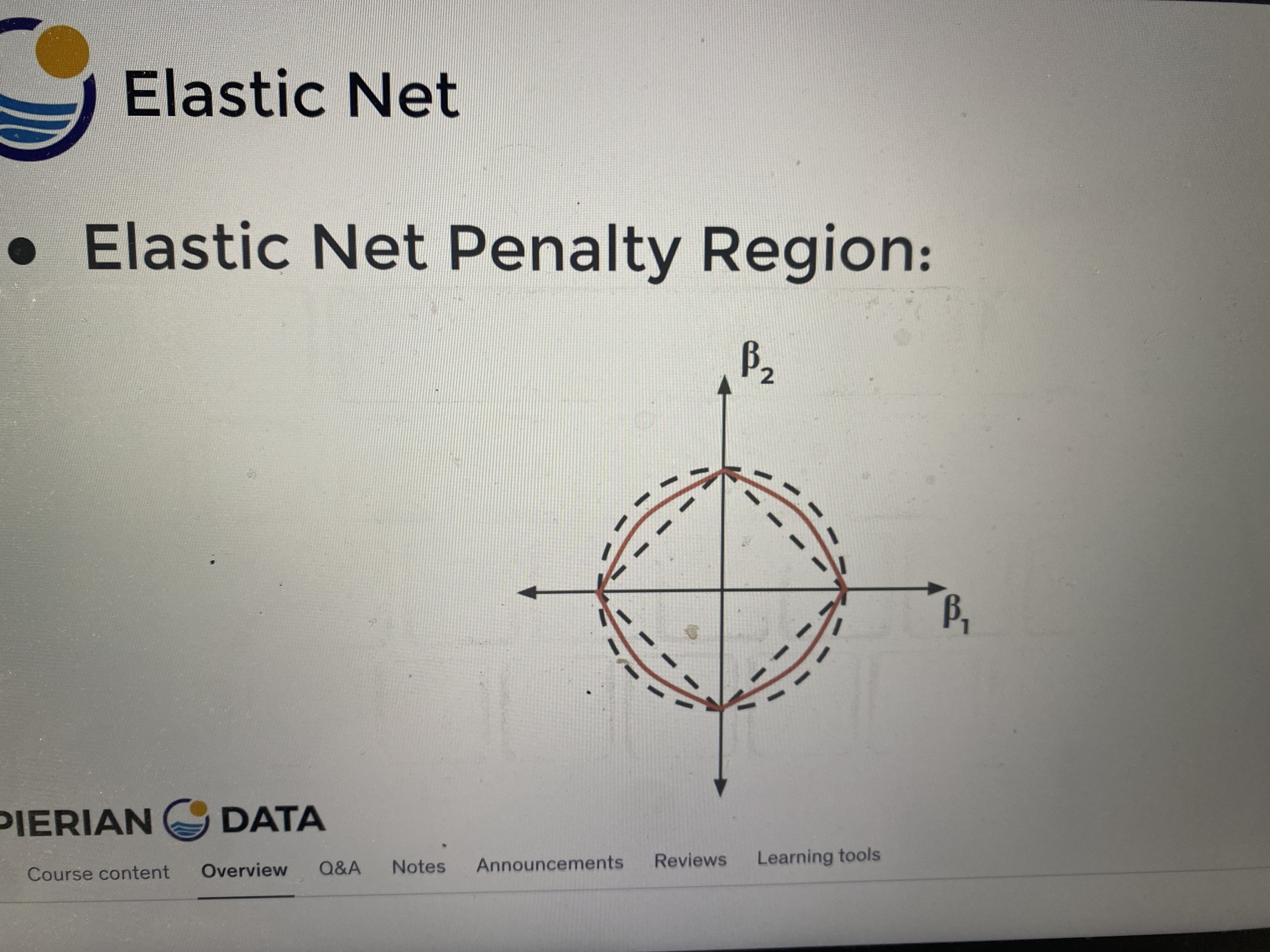

So Elastic Net region looks like:
between circle and diamond
That’s exactly what your last picture shows.
diamond shape
rounded by ridge
7️⃣ Why Elastic Net exists
LASSO has a weakness.
If predictors are highly correlated, LASSO tends to:
pick one variable
drop the others
Example:
blood_pressure
pulse_pressure
shock_index
They are correlated.
LASSO may choose only one.
But medically maybe you want all related signals.
Elastic Net fixes this.
It:
shrinks like Ridge
selects like LASSO
So correlated variables can stay together.
8️⃣ Quick intuition summary
| Method | Shape | Effect |
|---|---|---|
| Ridge | circle | shrink coefficients |
| LASSO | diamond | feature selection |
| Elastic Net | rounded diamond | shrink + select |
9️⃣ One thing that helps ML understanding a lot
Most ML optimization problems are actually:
loss surface (ellipses)
+
constraint region
=
intersection point
This geometric view shows up everywhere:
-
LASSO
-
SVM
-
logistic regression
-
deep learning optimization
